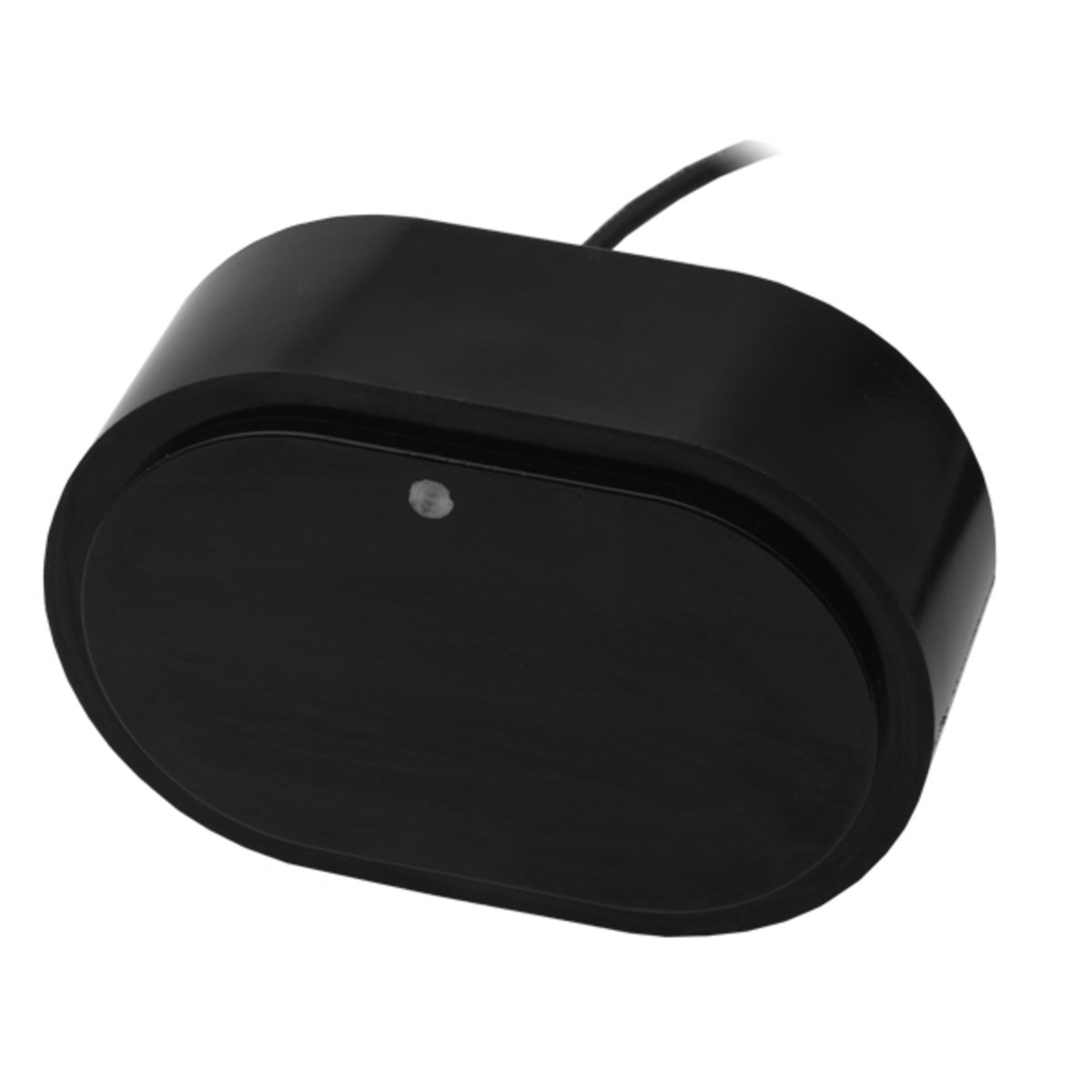

Get more coverage under your boat with Airmar’s unique wide-beam, high-frequency, Chirp-ready transducer. The high band operates across a frequency range of 150 to 250 kHz and has a fixed 25° beam for all frequencies. The high-frequency band results in superior resolution. The constantly wide beam provides twice the coverage and excellent fish arches on the display compared to most high-frequency, narrow-beam, transducer options.
The high wide is the ideal choice for both inshore and pelagic fishing, where resolution and maximum coverage under the boat are essential down to 152 m (500'). The low-frequency band and 1 kW of power support great deeper-water performance. And all this is packed into one Sealcast™ housing. Get the best of both worlds with Airmar’s dual-frequency, Chirp-ready transducers with wide-beam coverage.
Features:
- Depth and fast-response water-temperature sensor
- 1 kW
- Low frequency: 42 to 65 kHz
- 25° to 16° beamwidth
- Maximum depth of 914 m (3,000')
- High frequency: from 150 to 250 kHz
- 25° constant beamwidth
- Maximum depth of 152 m (500')
- 123 kHz of total bandwidth from one transducer
- Covers popular fishing frequencies of 50 and 200 kHz plus everything else in the bandwidth
- High frequency produces superior shallow-water performance, bottom detail, and fish-target separation
- High wide beamwidth yields more coverage for detecting fish in the upper-water column
- Sealcast, seamless, urethane housing for long product life
- Curved-edge design for wet-box installation
- Also available as thru-hull (B275LHW), transom (TM275LHW) and pocket/keel (PM275LHW) mounts
- Exclusive Xducer ID® technology
Specifications
- Weight: 5.3 kg (11.6 lb.)
- Recommended Boat Length: 8 m (25') and above
- Hull Material: Steel
- Hull Deadrise: Accommodates any deadrise angle based on custom welded-tank construction
- Acoustic Window: Urethane
- Transducer Element: Eight internal broadband ceramic assemblies
