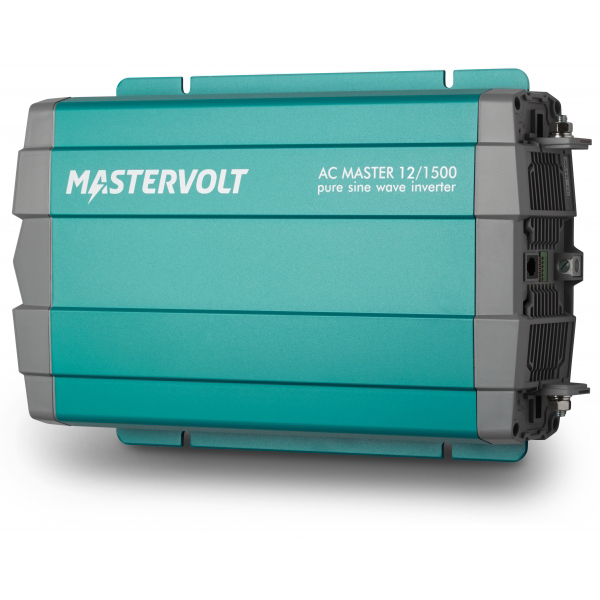

These affordable sine wave inverters convert 12 or 24 V battery voltage into reliable 230 V 50/60 Hz or 120 V 50/60 Hz grid power, making them ideal for recreational and semi-professional applications. The AC Master series is easy to install and delivers full output, even under the most demanding conditions. The pure sine wave technology provides an outstanding power quality, ensuring the correct functioning of sensitive equipment. The usage of high frequency switching technology eliminates any annoying humming and buzzing sounds.
Representing complete value for money, these ruggedly built inverters provide essential home comforts when you’re far from the nearest grid connection.
Features:
- Pure sine wave technology protects sensitive equipment.
- Delivers full output at high peak power under the most demanding conditions.
- Automatic power saving system for extended runtime.
- Compact and lightweight design, saving valuable installation time.
- Reliable and safe operation; protected against over-temperature, overload, short circuit, high or low battery voltage.
- Variable speed fan for quiet operation at low power.
- Optional remote control for instant switch off of the inverter and all connected equipment (not available for the 300 and 500 W models).
- Convenient plug connection for all models, 2500/3500 Watt models also hard wired.
Applications:
Both recreational and semi-professional use, where grid power varies or is unavailable. Applications include lighting, appliances, electric cooking and power tools. For (mobile) applications in your home, office or service vehicle, or during your holidays.
Specifications:
- Output voltage 230/240 V – 50/60 Hz (selectable)
- Output waveform true sine
- Nominal battery voltage 12 V
- Recommended battery capacity = 270 Ah
- Continuous power at 25 °C / 77 °F, cos phi 1 2500 W
- Continuous power at 40 °C / 104 °F, cos phi 1 2500 W
- Peak load (3 s) < 3000 W
- Peak load (< 0.2 s) < 4000 W
- AC connection hardwired + plug connection EU (Schuko), with UK plug (code 28212500) or NZ/AU plug (code 28412500)
- Galvanic isolation yes
- Efficiency 88 %
- Parallel configuration yes, up to 15 units
- 3-Phase configuration yes, 3 units
- Display/read-out LED indication: battery voltage, load level, status
- Alarms potential free alarm contact
- Dimensions, hxwxd 283 x 436 x 128 mm/11.1 x 17.2 x 5.0 inch
- Weight 8 kg/17.6 lb
- Approvals CE, E-mark, RCM
