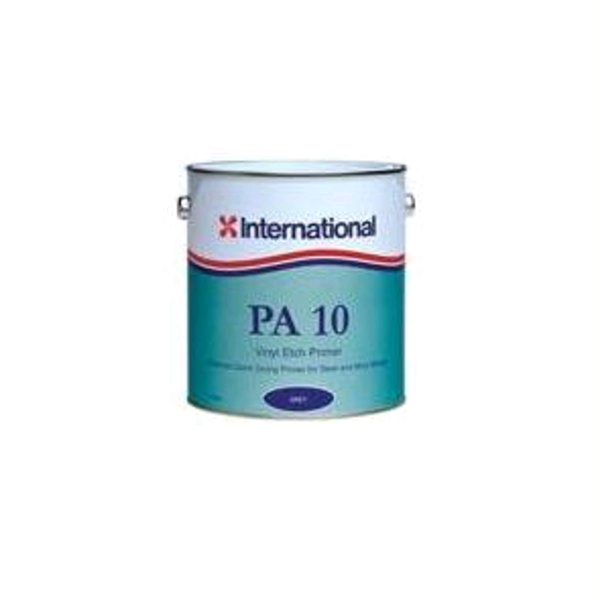

Inter Pa10 1-Pk Metal Etch Primer Red Oxide 4 Litre

PA 10 is a vinyl etching primer which combines a metal pre-treatment with the first coat of primer for use on props, shafts and stern gear prior to antifouling.

A single pack anticorrosive vinyl etch primer. Suitable for use as an anticorrosive primer for application to Steel and Aluminium surfaces above the waterline. Also for use as a primer for props and shafts prior to applying antifouling (red only); as a concrete floor finish; and as a primer for non ferrous metals.
* Excellent anticorrosive protection
* Can be applied by brush, roller or spray
* Quick drying.
* Combines primer and etching primer in one product

Application Details - PA 10:
Area Propellers, shafts and sterngear
Finish/Sheen Low sheen
Thinner: PA10 Thinners (not generally required if brushing or rolling)
Number of Coats: 1-3 depending on use.
Method of application: Brush / Roller / Airless Spray / Conventional Spray

DRYING-Potlife: Touch Dry [ISO]

15°C: 35mins

5°C: 20mins

23°C: 15mins

35°C: 10mins

Can be Overcoated By:

Bottomkote, Coppercoat, Coppercoat Extra, Cruiser Superior, International/Interlux Antifouling, Interspeed 2000, Longlife, Longlife Extra, Micron 66, Micron CSC, Micron Extra, PA 10, Primocon, Primocon (Professional), Trilux, Trilux 33, Ultra, VC Offshore.

APPLICATION AND USE:
Preparation-

STEEL: Thoroughly degrease with a suitable thinner/cleaner using the 2 cloth method prior to carrying out any mechanical cleaning. Blast damaged or corroded areas to near white metal surface as per AS1627.4 Class 2.5. If blasting is not possible, grind with 24-36 grade (grit) discs to a uniform, clean, bright metal surface with a 50-75 microns anchor pattern. Use angle grinder on small areas.
ALUMINIUM: Thoroughly degrease with a suitable thinner/cleaner using the 2 cloth method prior to carrying out any mechanical cleaning. Low pressure grit blast using aluminium oxide or a copper-free equivalent. If blasting is not possible, power disc with 24-36 grade discs to a surface profile of 50-75 micron/ 2-3 mils. (NB Power wire brushing is not permitted as it is ineffective and wires are often steel, leading to corrosion). After being degreased the aluminium surface may be sanded, on small areas, with aluminium oxide papers to present a water break surface.
STAINLESS STEEL/BRONZE PROPELLORS: Thoroughly degrease with a suitable thinner/cleaner using the 2 cloth method prior to carrying out any mechanical cleaning. Grind or blast to produce a profile.
ZINC/GALVANISED STEEL: On new surfaces/those free from oxidation by-products, thoroughly degrease with suitable thinners using the two cloth method. Oxidised surfaces will require mechanical abrasion to clean thoroughly.
NOTE: IN A MARINE ENVIRONMENT ONLY USE THE PA 10 RED OXIDE FOR THE ABOVE USES.
IMPORTANT NOTES:
For further information refer to International Professional Application Manual or the International Boat Painting and Product Guide.:

Method:

Remove blast/grinding/sanding residues with a clean air line & sweep with a clean brush, or vacuum clean for best results. On blasted and rough ground surfaces do not try and wipe with rags and thinners as the rags will catch and leave particles of cloth behind. Apply required number of coats, detailed in the specification sheets, by method chosen or stipulated, allowing required overcoating interval between applications.

Hints:

Thinner- YTA010 International PA 10 Thinners #5.
Cleaner- YTA010 International PA 10 Thinners #5.
Ventilation and Humidity Control- Ensure adequate ventilation during use.
Airless Spray Pressure: 210 bar. Tip Size: 1365-1580.
Conventional Spray Pressure: 2.3 bar. Tip size: 1.1-1.3 mm.

Some Important Points:

Do not apply at temperatures within 3°C of dew point. Product temperature should be minimum 10°C/50°F and maximum 35°C/95°F. Ambient temperature should be minimum 5°C/40°F and maximum 35°C/95°F. Substrate temperature should be minimum 5°C/40°F and maximum 35°C/95°F.

Compatibility/Substrates:

Suitable for use on Steel and Aluminium surfaces. For use above the waterline only. Red can be used below water for props and shafts only. Suitable for concrete and non ferrous metals.

Number of Coats 1-3 depending on use.

Coverage (Theoretical) - 13.60 (m²/lt)

(Practical) - 10.00 (m²/lt) by spray

Recommended DFT- 11 microns dry

Recommended WFT- 73 microns wet

Application Methods Brush, Roller, Airless Spray, Conventional Spray
