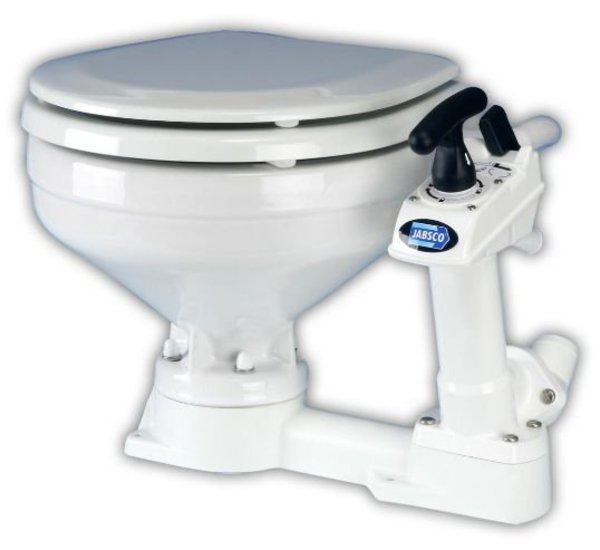

Twist 'n' Lock safety handle & flush control lever.
Jabsco is the world's largest manufacturer of small craft marine toilet systems and we have applied all our experience into their latest Manual Toilet refining the design that is used by nearly all boatbuilders worldwide. For extra safety and peace of mind the intuitive, simple to use, Twist 'n' Lock action handle guards against syphonic flooding and waste backflow. With one easy 90° turn of the handle, the lock is applied. Turning the handle back to the natural operating position opens the lock again.
Features:
• Twist 'n' Lock safety handle and flush control lever.
• Powerful swirl action for efficient flushing.
• Full sized external seal housing allows quick clean seal replacement and instant access to pump cylinder.
• Powerful Self-priming pump for above or below waterline installation.
• Crevice free contours and smooth mouldings for added hygiene.
• Automatic vacuum breaker for easier pumping.
• Angled pump housing and long stroke for ease of installation.
Specifications:
Weight 11.6 kg 23½ lb
MATERIALS:
Materials; Stylised luxury wooden seat and cover with tough baked enamel coating.; Hygienic pure white vitreous china bowl for ease of cleaning.; Full sized regular bowl or compact bowls available.; Reversible pump mounting for choice of right or left handled installation.
DETAILED INFORMATION:
Design
Twist ‘n' lock action safety handle guards against flooding and waste
backflow by locking the waste outlet valve shut.
Reversible pump mounting allows re-assembly for left hand operation
by installer.
Powerful self-priming, double-acting piston pump.
Strong swirl action for efficient flushing.
Crevice free contours and skirted base for added cleanliness and
hygiene.
Contoured handle and conveniently positioned flush control lever for
ease of use.
Angled pump housing and long stroke for easier pumping.
Spring assisted top valve closure for easier priming.
Automatic vacuum breaker operated by flush control lever for easier
bowl emptying.
Constant 38mm (11/2") bore waste path minimises blockages.
Aortic joker valve combines full 38mm (11/2") bore with automatic backflow prevention.
Multi-angle discharge elbow for ease of installation.
Accessible mounting points for faster installation.
All fastenings face front or top for superbly simple servicing without
need for special tools.
Renewable external seal housing for quick, clean replacement of seal
and piston rod guide.
Positively located gaskets ensure correct re-assembly.
Dual function base plug combines winter drain point with easy
cleaning access.
Materials
Luxury wooden seat and cover with tough baked enamel coating.
Hygienic white ceramic bowl for ease of cleaning.
Pump and base moulded in ABS or polypropylene with selected parts
in acetal resin, fitted with 316 passivated stainless steel fastenings,
brass weights and neoprene seals and gaskets.
Performance
Flushing pump self-primes from dry up to 1 metre (3ft) below the
base.
Waste pump discharges up to 3 metres (9ft) above the base.
