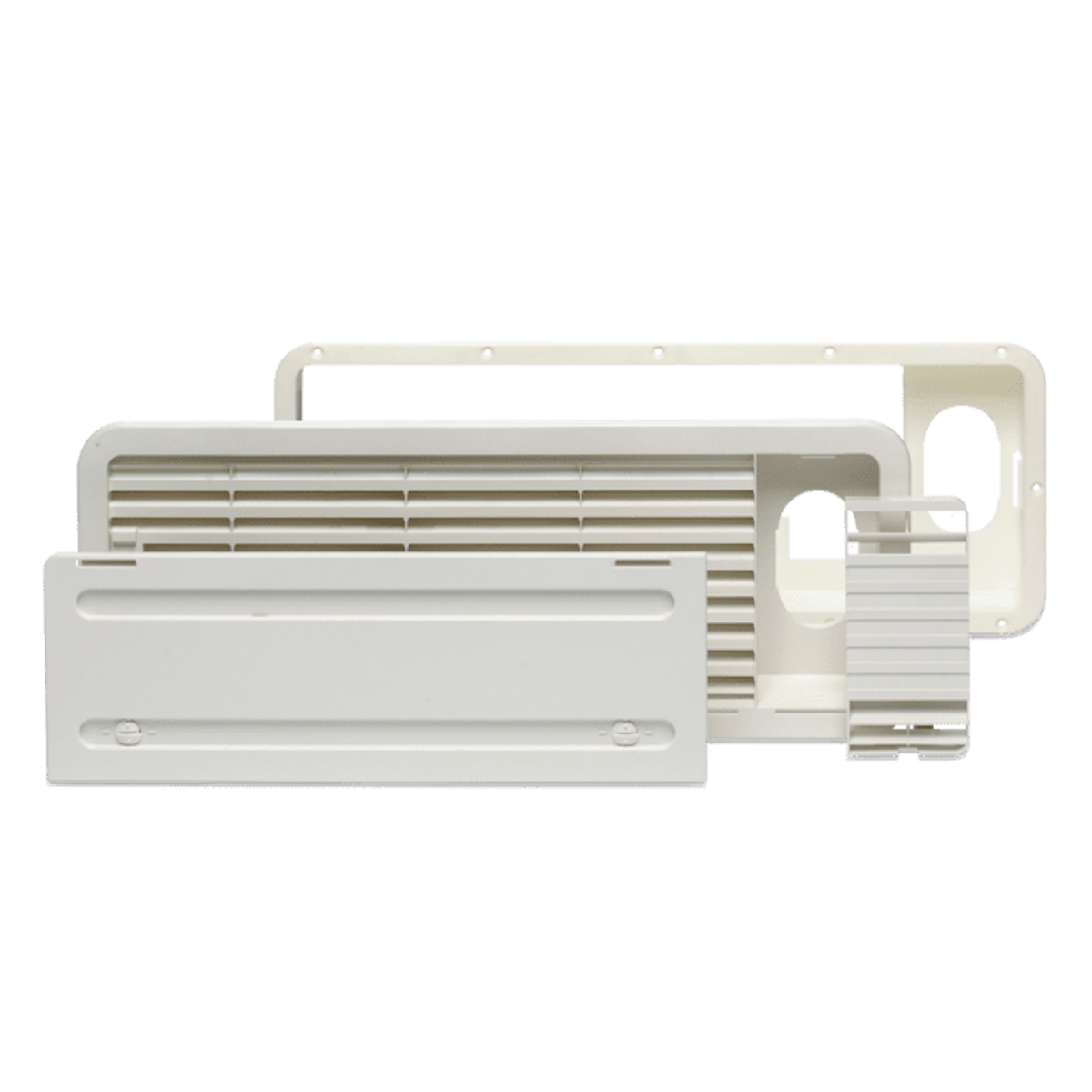

The Dometic ventilation and extraction system ensures optimal performance by your absorption refridgerator!
The mounting frames fit 451 x 156 apertures in the outer wall. The flue is integrated into the upper grille for a tidy appearance. Rainproof grilles are secured to the mounting frames by turnbuckles. A well-equipped recreation vehicle is easy to spot. It has two refrigerator ventilation grilles on the outside.
Physically speaking, cold is the absence of heat, so to get something cool you have to remove the heat. A refrigerator releases this heat at the back, and the heat must be able to escape to prevent heat building up and reducing the refrigerators effectiveness. A ventilation system from Dometic is designed to permit service and maintenance, for example cleaning the exhaust duct, without requiring removal of the refrigerator.

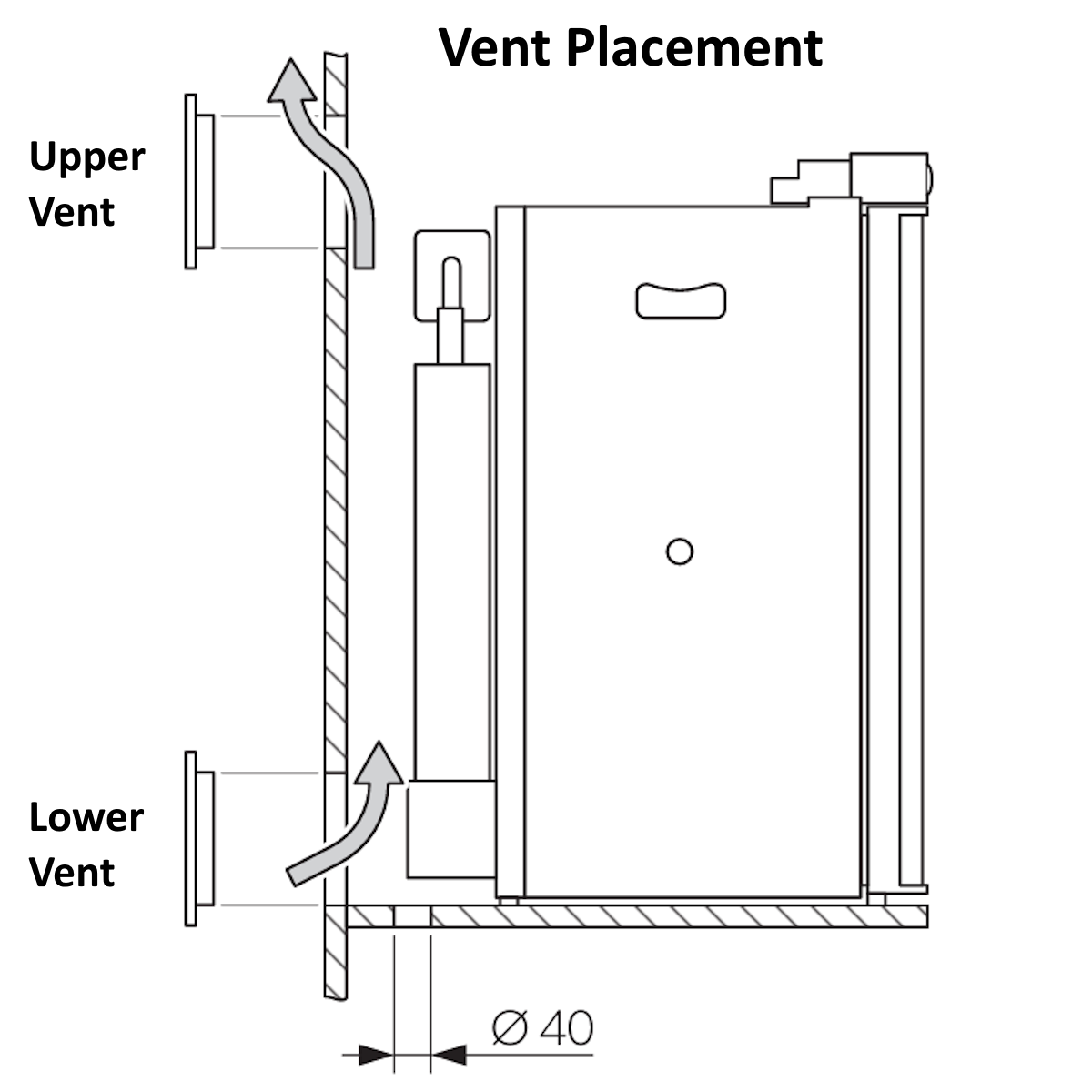

Your new vehicle will probably come with this system already installed. If you‘re retrofitting, you‘ll need to fit the ventilation grilles in the outside skin of the vehicle above and below the refrigerator. The upper grille allows heated air to escape, while the lower grille admits cooler air from the outside to the rear of the refrigerator.
See vent 1610/1 for the lower vent to suit as pictured. Upper vent only supplied.
Features:
- Removable panel
- Connect point for flue kit
- Suitable for up to 90L fridges
- Durable Plastic Construction
Specifications:

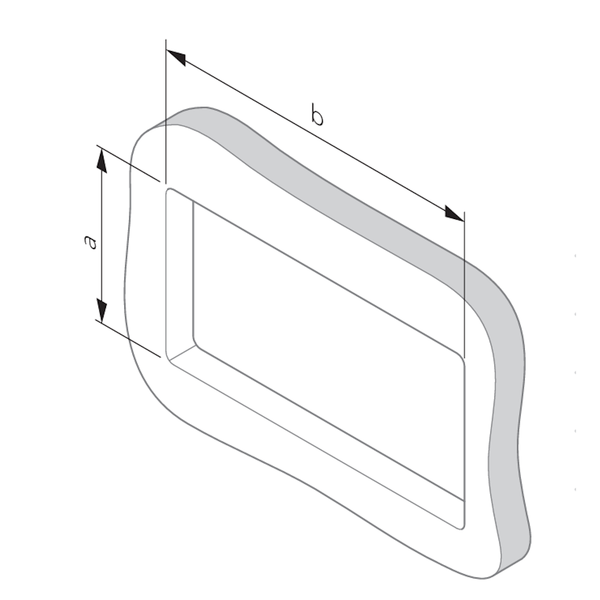

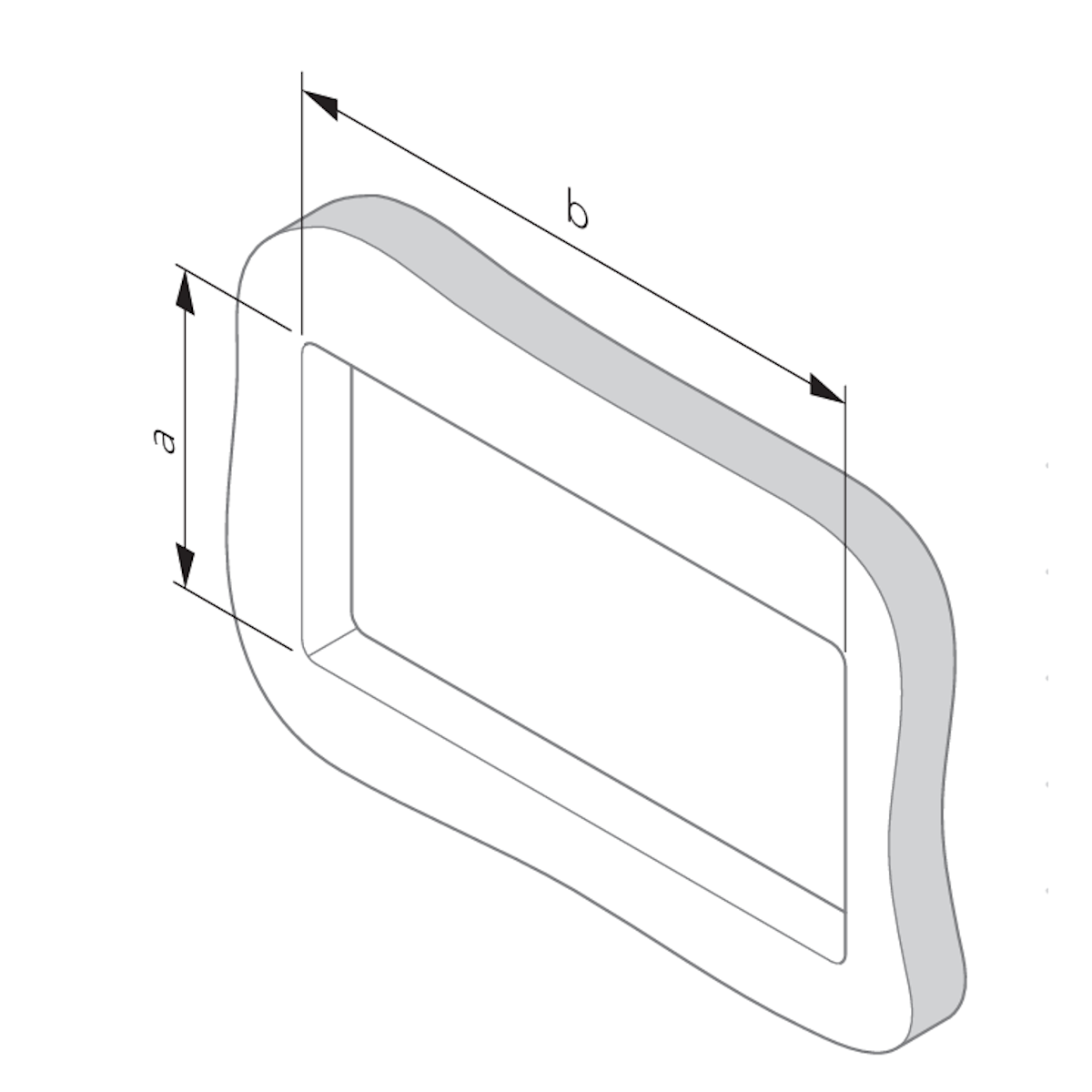

- Cut-out size: 451mm W x 156mm H
- Overall: 479mm W x 185mm H
- Securing of mounting frame: -10 screws required (not included)
- Area of Grill (cm2): 300
