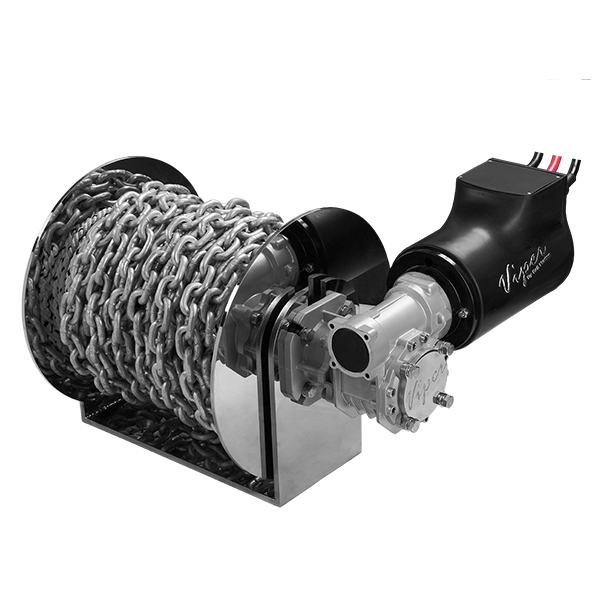

1500 Anchor Drum Winch with switchgear and Rope/Chain/Acc Pack (200MX6MM rope+10MX8MM chain)
Most Powerful in Viper range
Specifications:
- Max Fall Rate: 50mtrs per minute
- Max Retrieval Rate: 46mtrs per minute
- Suit Vessel Length: 8 mtrs +
- Max Load: 360kgs
- Weight: 28kgs
Includes:
- Viper Pro Series Ii 1500 Anchor Winch – Supplied With 1 Mtr 3b&s Power Leads & Joining Connectors, Pressure Tested & Sealed
- 200mtrs Of 6mm Double Braid Premium Rope & 10mtrs Of 8mm Short Link Chain
- Spliced To 10 Mtrs Of 8mm Galvanised Short Link Anchor Chain Viper Pro Series Anchor Swivel Large
- Viper Deluxe Anchor Roller Large
- 400amp Reversing Solenoid
- Led Illuminated Marine Rocker Switch
- Viper Laser Inscribed Led Illuminated Switch Cover
- 135 Amp Flush Mount Circuit Breaker With Rubber Seal
- Single Led Switch Stainless Steel Face Plate
- Combo Led Switch & Circuit Breaker S/s Face Plate
- 5mm Stainless Steel Sandwich Plate
- All Fixing Hardware
- Installation Notes & Wiring Diagram
It is designed for larger vessel installations of 8 meters plus. The 1500 has a huge rope capacity of up to 200 meters of 6mm double braid rope, spliced to 10 meters of 8mm short link chain making anchor in deep water a breeze and the 1500 is powerful enough to haul up a 37lb plus anchor all day.
The Viper 1500W is our fastest and most powerful drum winch in our range with an amazing fall rate of 55mtrs per minute!
All you have to add is your own cabling or one of our custom made Bell Marine tinned copper marine wiring looms and you will never have to break your back pulling up your anchor and chain again!
Please note: 1 meter of 3 B&S Cable is already attached to our motor and pressured tested, so there is no need to remove end caps that are not sealed properly!
With unsurpassed Viper reliability, it has more torque than a conventional drum winch, 3 support bearings hugging a 1 piece 32mm solid stainless steel shaft and 90 degree welded housing bracket which closes up the gap between your drum (preventing rope jams) and does not require any additional guards. Constructed from 8mm plate 316 marine grade stainless steel (hand polished to a mirror finish) & comes std with a LIFE TIME warranty against water intrusion, and a bullet proof 5 YEAR Viper performance warranty.
If you take your boating seriously and have an application that requires reliability and unsurpassed performance, then you can’t go past the Viper Pro Series II 1500!
Please note: 1 mtr of 3B&S cables is already attached to our motor and leak tested, so there is no need to remove end caps that are not sealed properly!
