Series 40mm, all Purpose Blocks, Single, universal head.
Smart Features:
Exceptionally high working loads
Low maintenance, long service life
Self-lubricating sheave
Captive Lock™ universal head
Slotted pin shackle eliminates fouled lines
DIMENSIONS:
Sheave Ø 40 mm
Max. Rope Ø 10 mm
Max. Cable Ø - mm
Pin Ø 5.0 mm
M.W.L. 400 kg
B. L. 1000 kg
Weight 71 g
Product Information:

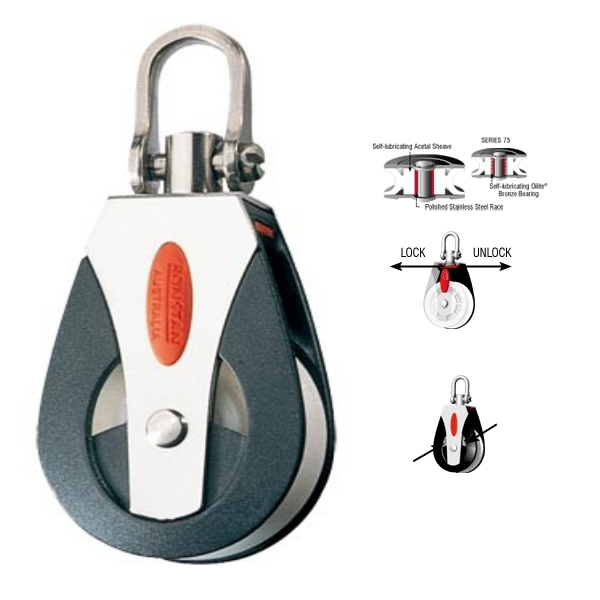

All purpose (AP) blocks are a great all around solution. Self-lubricating Acetal polymer sheaves running on polished stainless steel races perform equally well with dynamic loads and high static loads. For durability and a long service life, these blocks are the right choice for sheets, halyards and control line applications for cruising and racing.Captive Lock™ universal head can be fixed in either of two planes, or free to swivel as required
Applications:
Mainsheet
Halyard
Vang
Spinnaker control lines on off-the-beach catamarans, one design classes and sportsboats up to 8m (26ft)
Materials:
U.V. stabilised Acetal sheaves
Impact and U.V. resistant, fibre reinforced Nylon cheeks
Grade 316 stainless steel bearing race
Grade 316 stainless steel load strap and head fitting
Impact and UV resistant, fibre reinforced Nylon cheeks
