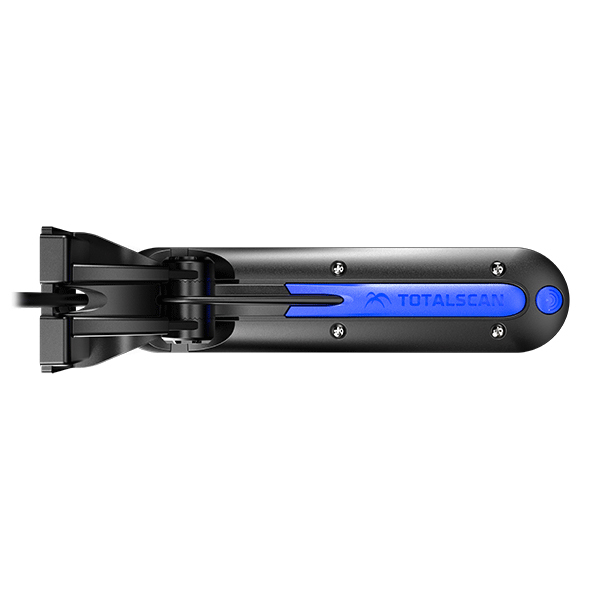

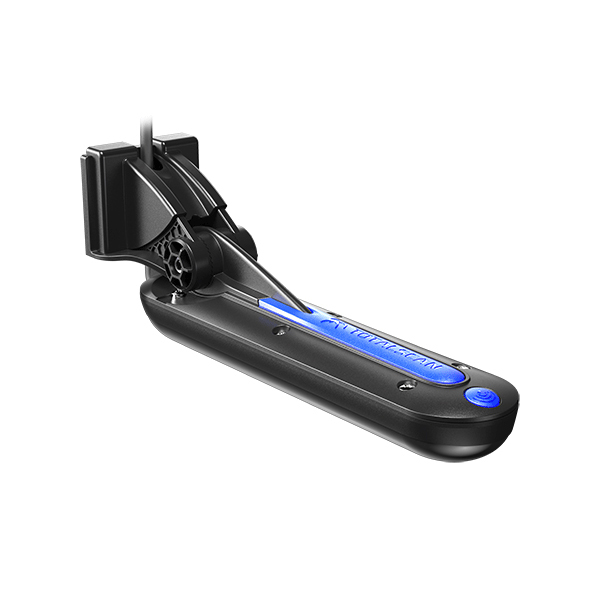

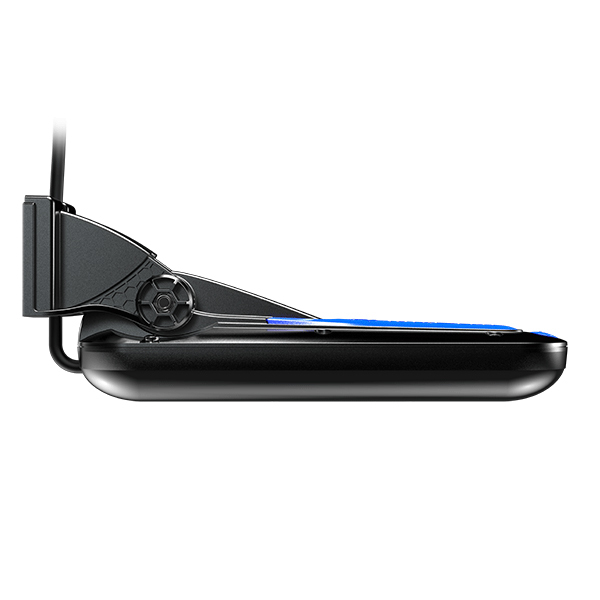

The TotalScan™ Skimmer Transducer combines the proven technology of CHIRP, DownScan™ Imaging and StructureScan™ HD into one package.
An all-in-one transducer, TotalScan™ matches proven Broadband and CHIRP sonar with StructureScan® HD and DownScan Imaging™ technology, making it possible to target fish and search for fish-holding structure with the same transducer.
The TotalScan™ transducer features multiple mounting options and is fully compatible with Lowrance Carbon, HDS Gen3, and Elite Ti models.
Specifications:
- Trandsucer Frequencies 83/200/455/800kHz, Medium/High CHIRP
SideScan Imaging
- Max Range: 455 kHz - 600’ (182 m), 300’ (91 m) to each side; 800 kHz - 200’ (60 m), 100’ (30 m) to each side
- Max Speed: 35 mph (56 kph)
- Mark Objects: 15 mph (24 kph)
- Optimum Speed: 10 mph (16 kph) or less
DownScan Imaging™
- Max Depth: 300’ (92 m)
- Max Speed: 55 mph (88 kph)
- Mark Objects: 35 mph (56 kph)
- Optimum Speed: 10 mph (16 kph) or less
Technical/Environmental
- Product Width 2.3” (59.2 mm)
- Product Length 10.2” (259 mm)
- Networking Connectors:
- Connectors xSonic (9-pin)
Other
- Cable 24’ (7.3 m)nsducer only.
