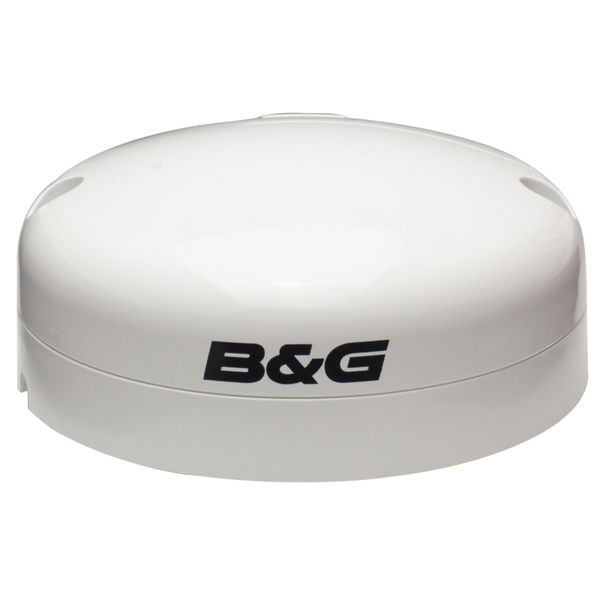

ZG100 gives you the ultimate precision in position and heading. The perfect partner for Zeus and Zeus Touch navigation systems, integrated compass/gyro provides chart stabilisation, accurate COG at low speed and smooth, precise location information.
The latest GPS positioning technology, combined with an update rate of 10 Hz, gives accuracy during acceleration and manouevering. NMEA2000® compatible and accurate in WAAS, EGNOS, MSAS and Galileo areas, the GZ100 is also QZSS-ready.
Please note this product is not suitable for use with MARPA or autopilot systems, this requires a rate compass such as the Gimballed Rate Compass.
High Accuracy
Compact Design
NMEA-2000 compatible
10Hz multi GNSS updates
eCompass/Gyro
GPS and GLONASS, WAAS/EGNOS/MSAS, Galileo and QZSS-ready
GENERAL
Reciever Type L1, C/A code, 1.575 GHz Frequency/L2 C/A code, 1.602 GHz Frequency
Channels 32 channels
Position Update Rate Up to 10 Hz (1,5,10)
Horizontal Accuracy 5 m
Heading Accuracy 3 degrees
Rate of Turn 3 degrees
Pitch / Roll Accuracy @30 degrees 1 grade error
Cold Start 50 sec
Start-Up Time 3 sec
Satelite Reacquisition 5 sec
COMMUNICATIONS
Serial Port N/A
Baud rates N/A
Data I/O Protocol NMEA 2000
NMEA Sentences
PGN Number PGN Title
GPS related
126992 System Time
129025 Position, RU
129026 COG & SOG RU
129029 Position Data
129539 GNS DOP
129540 GNS Satellites in view
127258 Magnetic Variation
Compass Related
127250 Compass Heading (Vessel Heading)
127251 Rate of Turn
127257 Attitude
ENVIRONMENTAL
Operating Temperature -25°C to +60°C
Storage Temperature -40°C to +85°C
Splash Proof IPX6,7
Humidity 40 deg C, 93%RH, operating
ELECTRICAL
Input Voltage 9v-18v
Reverse Polarity Protection Yes
Power Consumption < than 2w
Current Consumption < 100 mA @ 12 VDC
MECHANICAL
Dimensions 90mm (diam) x 38mm (height)
Weight 0.3 lbs aprox
Power/Data Cable NMEA 2000 thru NMEA 2000 BUS
Antenna Connector NMEA 2000 Micro C
Mounting Flush mount / Standar Pole Mount
CERTIFICATION
NMEA 2000 NMEA 2000 certified (planned)
